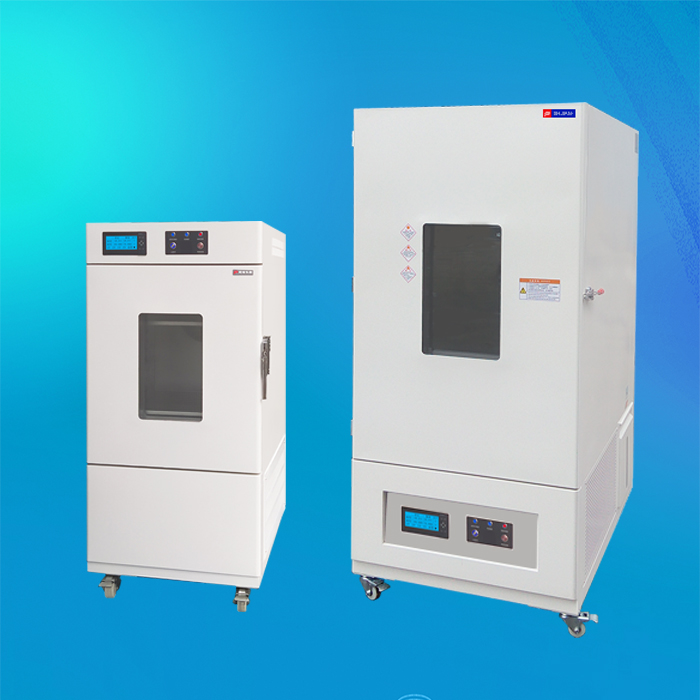

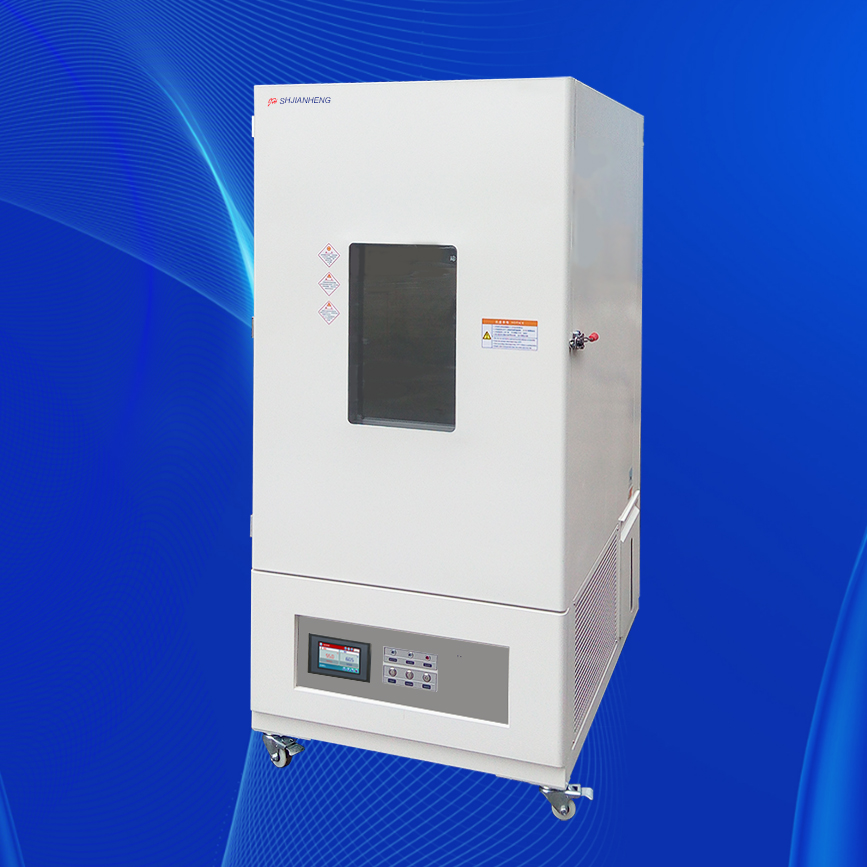

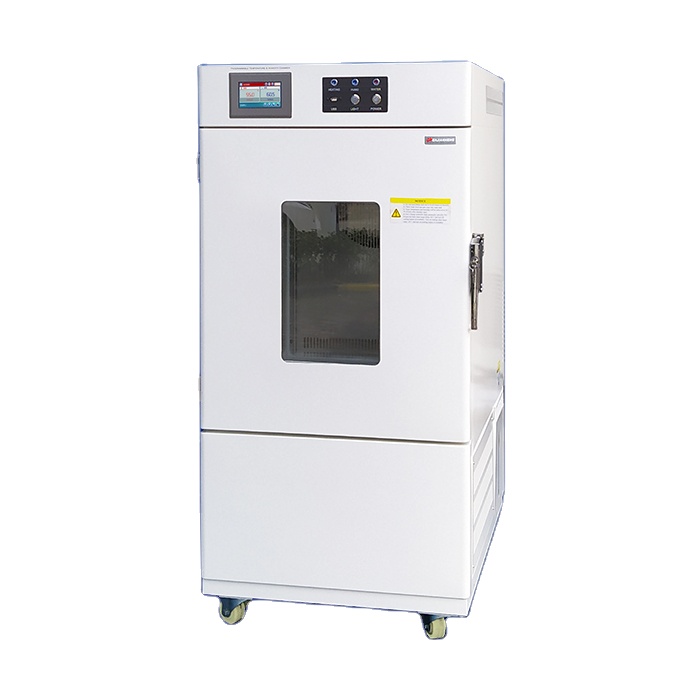

Quality Assurance Industrial Material Science Electronic Storage Humidity Cabinet For Pharmaceutical Medical Research
Product Description

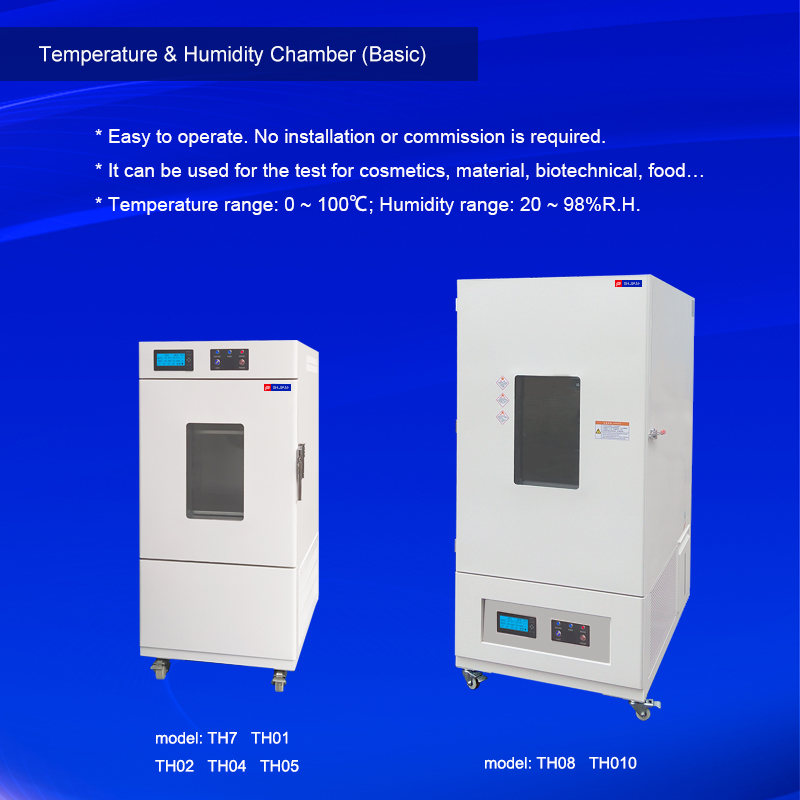

| Temperature & Humidity Chamber (Basic) | |||||||
|---|---|---|---|---|---|---|---|
| Model | TH7 | TH01 | TH02 | TH04 | TH05 | TH08 | TH010 |
| Inner size (cm) (D×W×H) |
40×40×50 | 50×50×60 | 60×55×75 | 67×63×90 | 72×72×95 | 85×75×120 | 90×85×130 |
| Capacity | 80L | 150L | 250L | 380L | 500L | 765L | 1000L |
| External size (cm) (D×W×H) |
80×52×130 | 88×68×132 | 100×68×155 | 107×75×166 | 114×86×174 | 130×92×190 | 130×98×198 |
| Temperature range | 0 ~ 100℃ | ||||||
| Temp. fluctuation | ±0.5℃ | ||||||
| Humidity range | 20 ~ 98%R.H. | ||||||
| Humidity fluctuation | ±2%R.H | ||||||

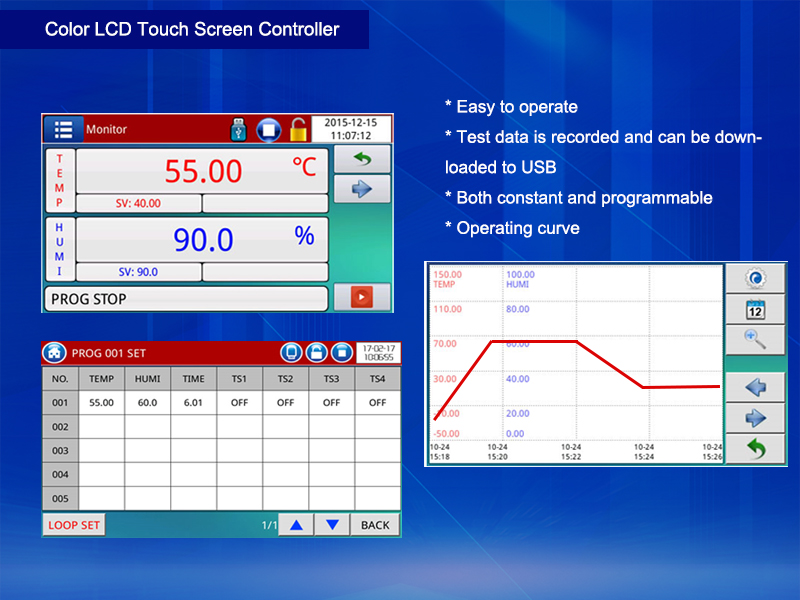

| Controller | LED digit display temperature & humidity controller with PID | ||||||
| Working mode | Fix | ||||||

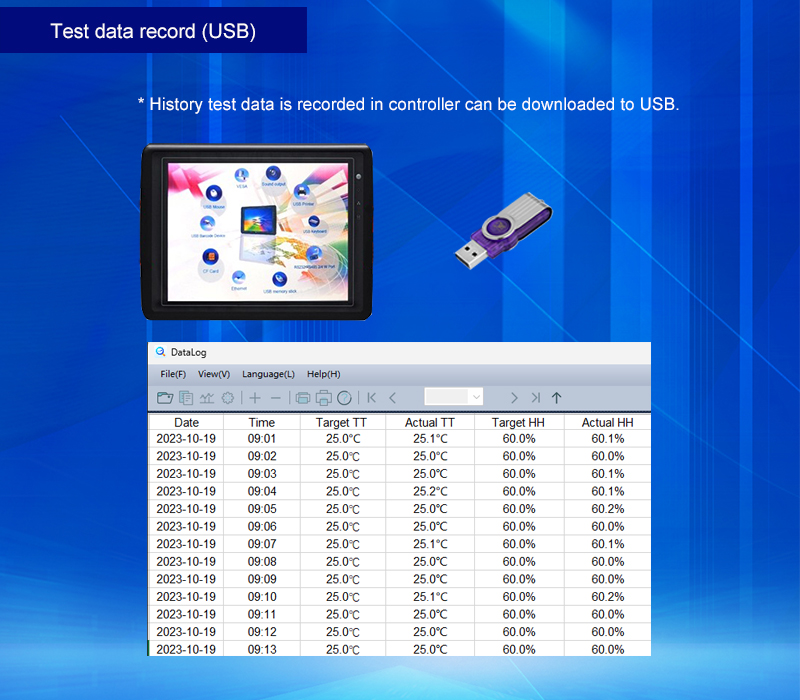

| Test data record | --/-- | ||||||

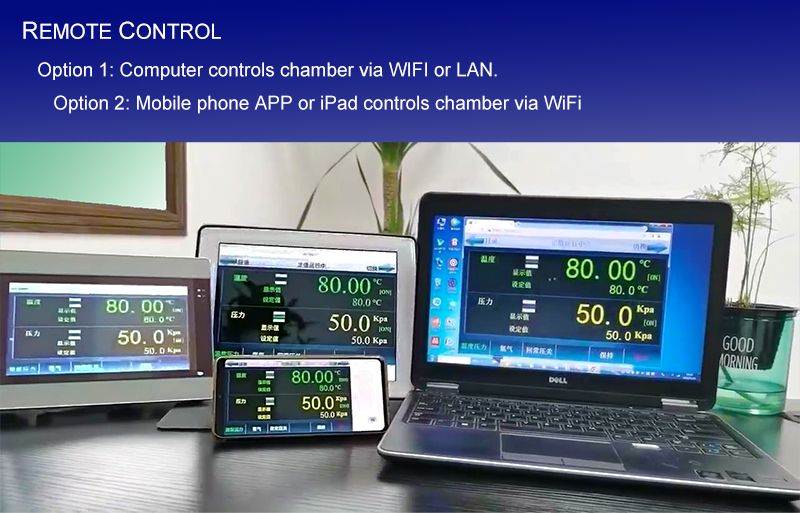

| Remote control | --/-- | ||||||
⚙️
All the sizes and technical specifications can be customised. If you have such requirements, please contact us.
Frequently Asked Questions (FAQ)
Q: What is the temperature range of the basic Temperature & Humidity Chamber models?
A: The basic models support a stable temperature range of 0℃ to 100℃ with a minimal temperature fluctuation of ±0.5℃.
Q: What humidity range can these climate chambers achieve?
A: These environmental chambers cover a wide humidity range from 20% to 98% R.H., maintaining a fluctuation control within ±2% R.H.
Q: Can the structural sizes and technical parameters be custom engineered?
A: Yes, all physical sizes and technical specifications can be fully customized based on specific industrial testing requirements.
Q: What type of control system is integrated into these chambers?
A: Every chamber is equipped with an intuitive LED digit display temperature & humidity controller featuring advanced PID adjustments for precision tracking.
Q: What options are available regarding volume capacity?
A: We offer a versatile selection of standard capacities to fit diverse sample loads, ranging from compact 80L models to large-scale 1000L industrial chambers.
